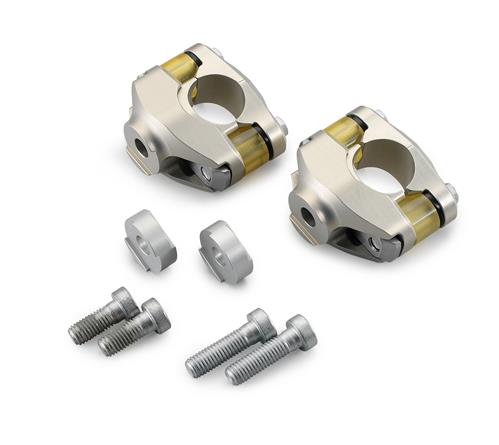

KTM Progressive Handlebar Damping System (PHDS) SX/XC/Enduro/Travel/Sport 03-26
The CNC-machined handlebar mounting with cushioning rubber inserts relieves wrist and shoulder joints.
Further benefits of the PHDS: - Cushioning of heavy hits
- Absorption of vibration from chassis and engine
- Additional handlebar damping in horizontal direction
- Optimum steering precision
- Handlebar height adjustable to 2 positions
- Further damping elements available in three degrees of hardness(soft, medium, hard) for individual tuning
Recommended Articles: Handlebar Pad [SXS07250800] PHDS Bracket for Factory Steering Damper [77012005644] Handlebar Pad [79002901050] Smartphone Handlebar Pad [79702902000]
Spare Parts: Hex collar screw M8x45 SW=10 [0015080453] Spacer 9mm [59501039004] Elastomer kit green/soft [SXS05125203] Elastomer kit yellow/medium [SXS05125204] Elastomer kit red/hard [SXS05125205] Lower shell PHDS [SXS07125203] Clamping bar set [SXS07125205] Base support [SXS07125206] Upper shell PHDS [SXS07125208] Hex-socket head screw M10x25 [0032100256S] Hex-socket head screw M10x35 [0032100356S]
|
