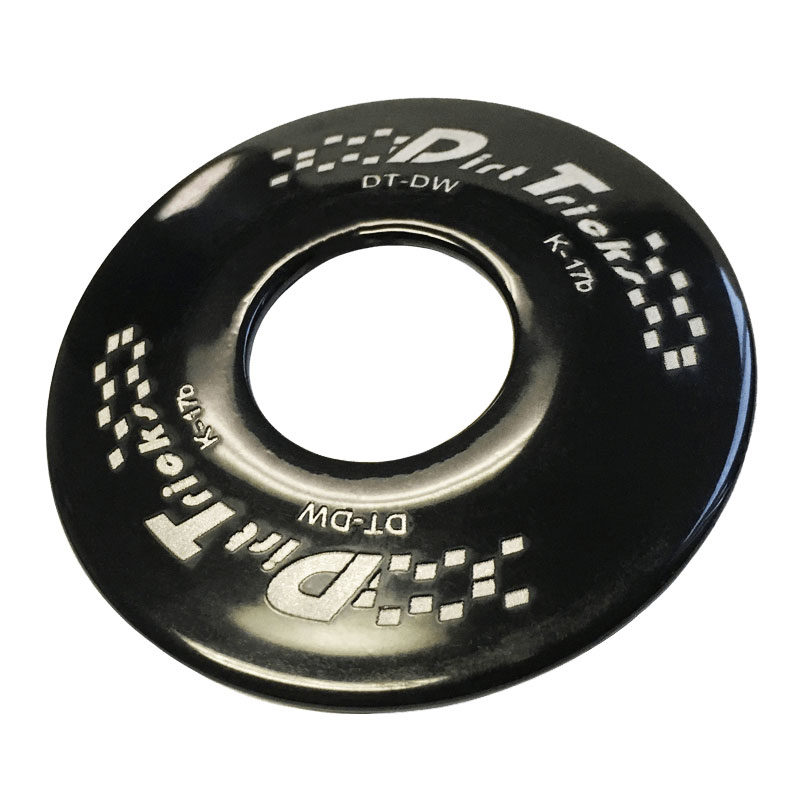

Dirt Tricks KTM Countershaft Dome Washer

SKU: KT-DW

Purchase Dirt Tricks KTM Countershaft Dome Washer
$24.99
★★★★★★★★★★ (1 Review)
Learn About Braap Cash Rewards Earn BraapCash points.



Will this fit?

You do not have a ride selected.

View all fitments


Description

Dirt Tricks KTM Countershaft Dome Washer

KTM Front Sprockets and Oil Leakage: There seems to be a number of myths floating that associate certain front sprockets with oil leakage on KTM four-strokes. The sectioned model below should clarify this. Oil is sealed at two points on the countershaft: Everything to the right of the lip seal (cream color) is submersed in oil.

First at the O-ring. This is a static or non-sliding seal that rotates with the countershaft/sprocket. As can be seen, the dome washer on the outside of the sprocket loads all of the elements, beginning with the screw, then the dome washer, the seal spacer bushing, an O-ring, and finally the inner race of the countershaft bearing. If the dome washer becomes distorted and flattened, it allow this stack of parts to develop clearance between them including the O-ring seal faces. If you are leaking oil around your sprocket, first check to see if the dome washer can be spun with some channel locks. If it can be spun, buy a new dome washer. Yours is flattened. Yes, a slightly thicker sprocket will make up for a worn dome washer, but the sprocket is not the cause. It would be like milling a cylinder head to make up for bad compression rings.

Second is the countershaft lip seal: This is a sliding seal - the seal being stationery and the shaft/bushing spinning. KTM has a very good design here in that they have used a hardened steel bushing to minimize wear from the seal. Do not begin changing this seal unless you have first ruled out the O-ring issue described above. The most common cause of these leaks is a flattened dome washer allowing clearance around the O-ring. It only take .010" of clearance (.25mm) to allow seepage.

Our testing has determined that the OEM dome washer is made of mildly heat treated material. When that component is installed under a tightened countershaft bolt, it is taken well beyond it's "yield" or "elastic" limit and permanently deforms. In that condition in cannot maintain the thrust pressure necessary to keep the sprocket tight to the splined shaft. That leads to two different failures. First, as described above, the O-ring is allowed enough clearance that is begins seeping. Secondly, the backlash between the splined shaft and sprocket is allowed to more freely pound in each direction, as the torque of power verses compression reverses itself.

Dirt Tricks has developed a tool steel, heat-treated dome washer that develops two to three times the preload force without reaching it's elastic limit and without overstressing the mating components. This solves O-ring leakage as well as extending the life of both the countershaft and sprocket splines. A countershaft replacement alone, with labor costs in excess of $700.

If you plan to keep your KTM four-stroke for many seasons this product is well worth the $25 investment.

Replaces the washer in OEM bolt/washer kit 59033034044. Fits virtually all KTM 4-stroke models. For 2017-up 2-stroke models, use item DT-DW_2KTM

Fits the rides below

Click the + on each item to expand the model(s) for that brand / year.

Video

Reviews

★★★★★★★★★★
5/5 Stars out of 1 Review
5
1
4
0
3
0
2
0
1
0
Good washer
Bought it because I heard they stop oil leaks
Pros: Inexpensive
Cons: Wish they had all 3 colors
Recommended: Yes
By Kieran Donahue (Yukon Oklahoma) | December 2nd, 2021
